CuSn6.5P Bimetallic Bearing Bronze Alloy Bimetal Sliding Bushing

Name: CuSn65P Bimetallic Bearing Bronze Alloy Bimetal Sliding Bushing
Brand: Joyreap
Price: 1 USD

China CuSn6.5P Bimetallic Bearing Bronze Alloy Bimetal Sliding Bushing wholesale

Brand Name : Joyreap

Model Number : ZR-037

Certification : ISO,IATF16949

Place of Origin : China

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 300,000PCS/Month

Delivery Time : 30 days

Packaging Details : Cartons+Wooden Pallets

Name : Bimetal Bushing

Keywords : Bimetallic Bearing

Brand : Joyreap

Material : CuSn6.5P

Feature : High fatigue strength

Contact Now

ZR-037 CuSn6.5P Bimetal Bushing Bronze Alloy Lead Free Bimetallic Sliding Bearing Bushing

ZR-037 wrapped bimetal sliding bearing is made of steel back with CuSn6.5P layer.the inner bronze alloy surface of bimetal bush can be processed with various types of oil grooves, oil hole and oil pockets according to the different working applications, to suitable for the conditions which can not continuously put oils or difficult to apply the grease.

Material Structure

CuSn6.5P Bimetallic Bearing Bronze Alloy Bimetal Sliding Bushing

1. Sinter bronze liner material: CuSn6.5P0.1
2. Metal backing low carbon steel back

Inner Surface Oil Pockets Types

CuSn6.5P Bimetallic Bearing Bronze Alloy Bimetal Sliding Bushing

Bimetal Bush Oil Grooves types

CuSn6.5P Bimetallic Bearing Bronze Alloy Bimetal Sliding Bushing

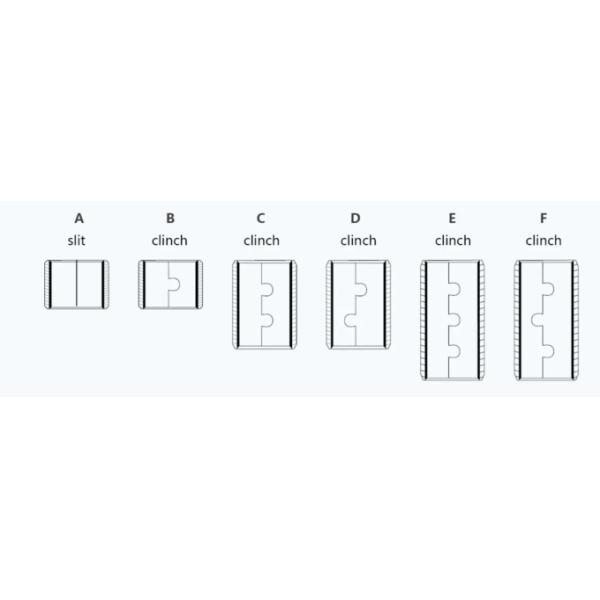

Bimetal Bushing Gap Types

CuSn6.5P Bimetallic Bearing Bronze Alloy Bimetal Sliding Bushing

Characteristics

High fatigue strength
High load capacity
Good sliding performance
It can replace the bimetal bearings with lead or copper bushings in many occasions.

Availability

Standard cylindrical bimetal bushing, bimetal thrust washers and bimetal strips
Special designed bimetal bearings are produced at short notice

Application

Balance suspension bushings and thrust washers for heavy-load vehicles
Idler & track roller for bulldozers
Kin pin bushings for automobiles

Technical Data

Materail	Steel+CuSn6.5P
Alloy layer hardness HB	70~100
Max dynamic Load P N/mm²	130
Max.Speed V m/s(Oil Lubrication)	5
Max.PV limit N/mm²·m/s(Oil Lubrication)	10
Friction Coefficient u(Oil Lubrication)	0.04-0.12
Max temperature ℃(Greased)	150℃
Max temperature ℃(Oil Lubrication)	250℃
Thermal conductivity W/mk	60
Coefficient of linear expansion	19×10-6/K﹣¹
Match the axis hardness HRC	≥53
Match the axis roughness Ra	0.16~0.63
